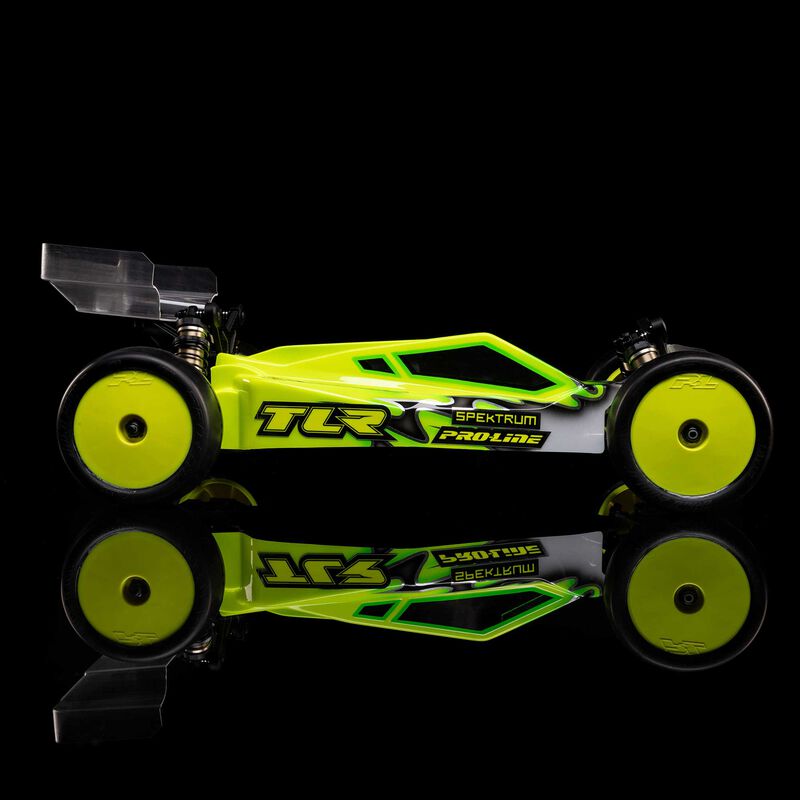

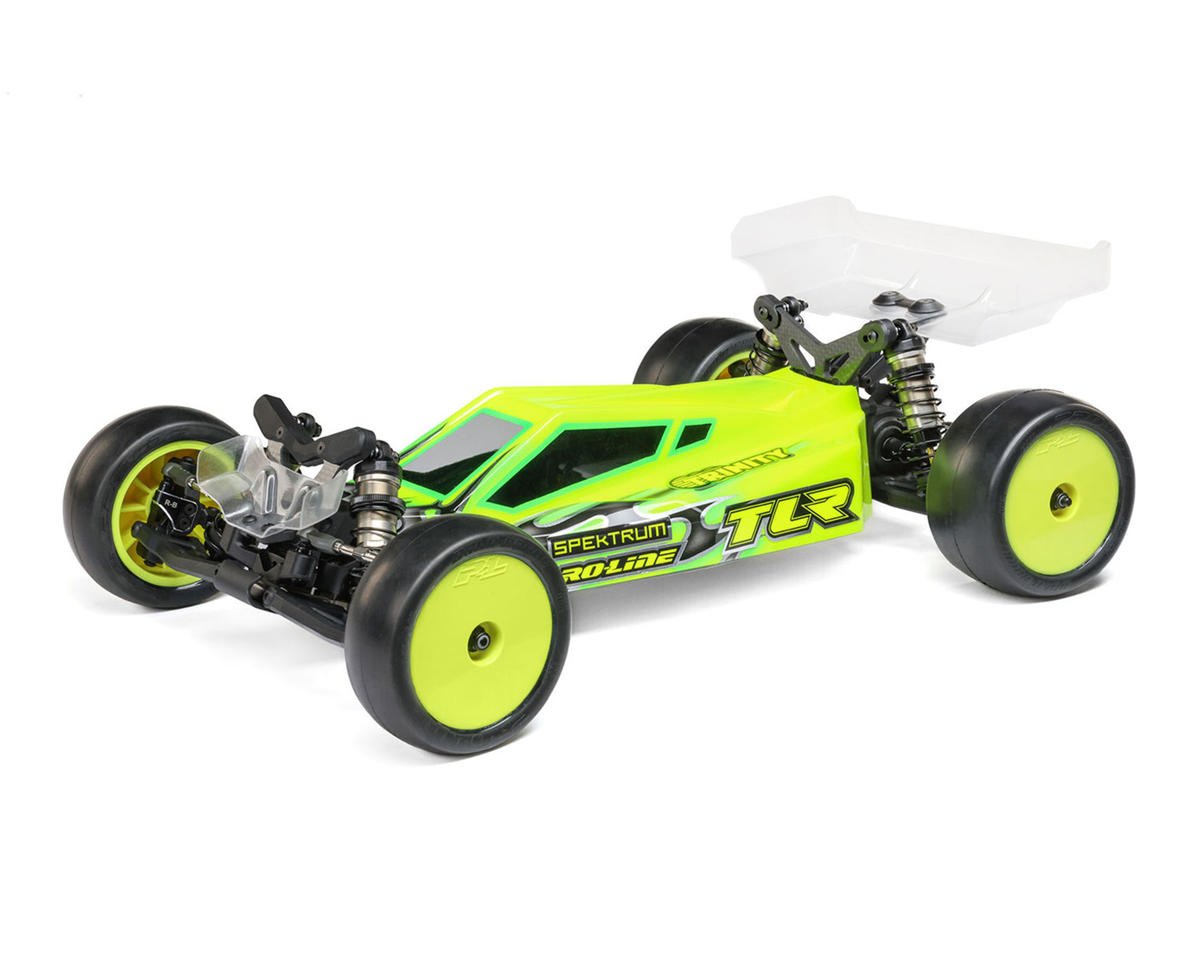

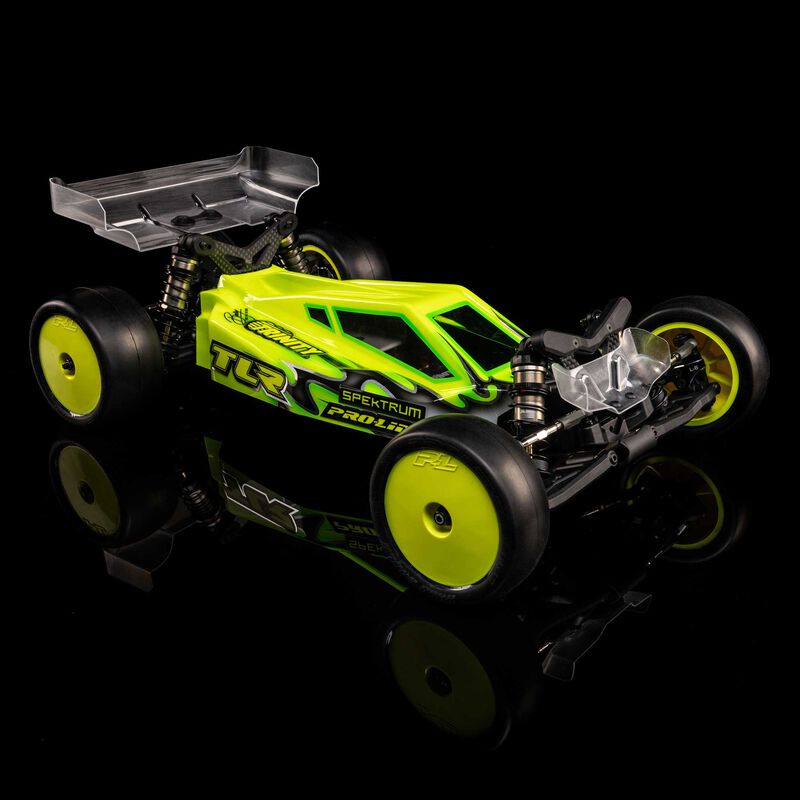

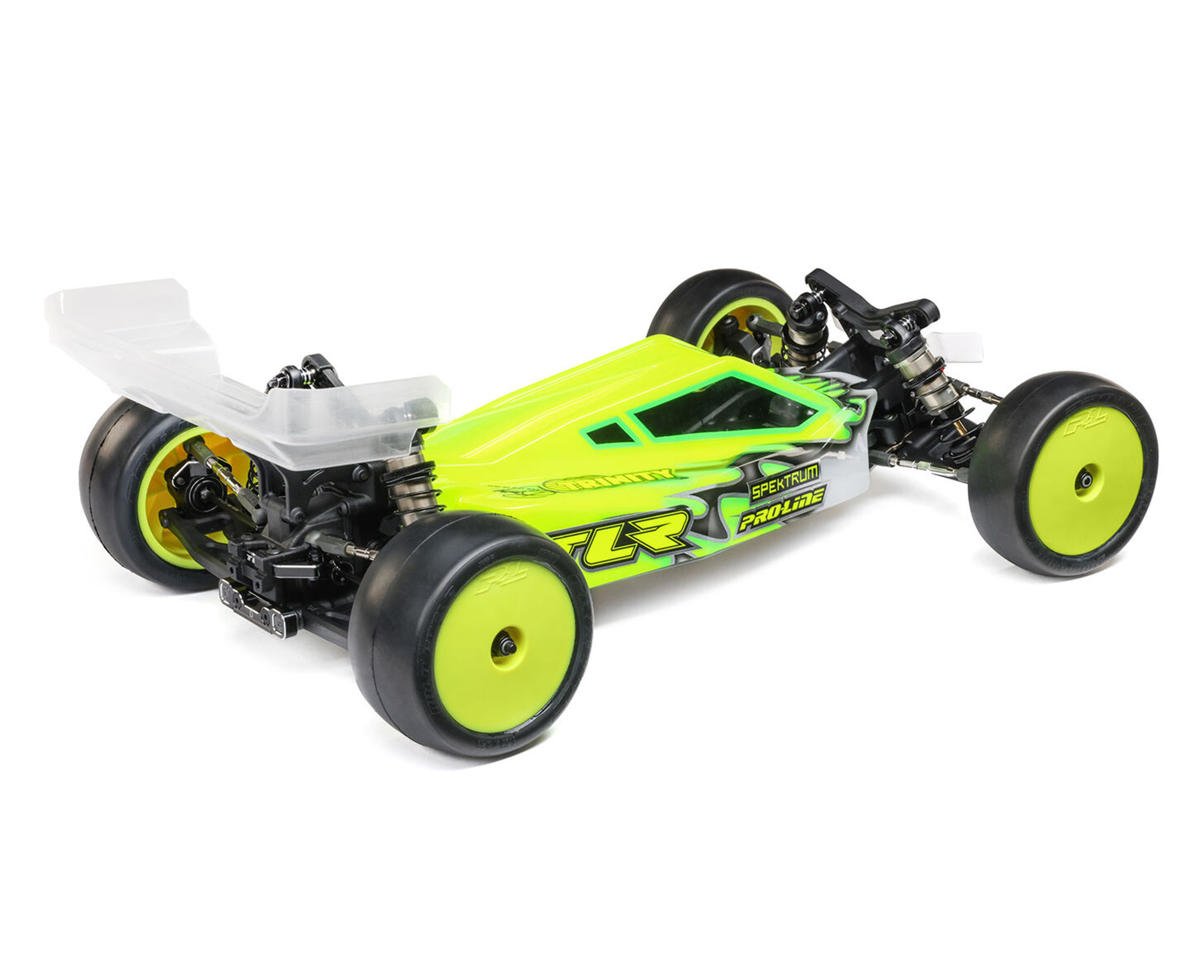

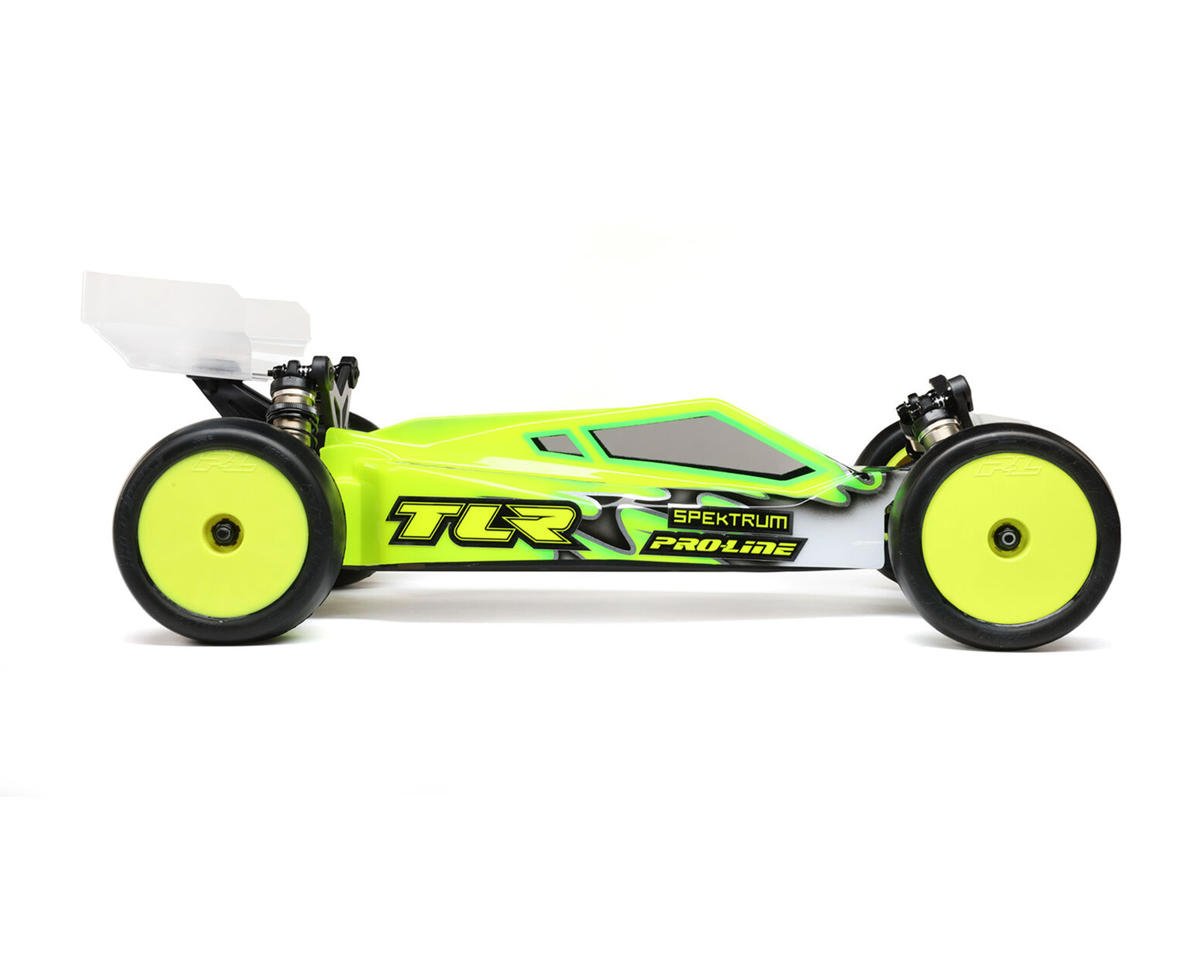

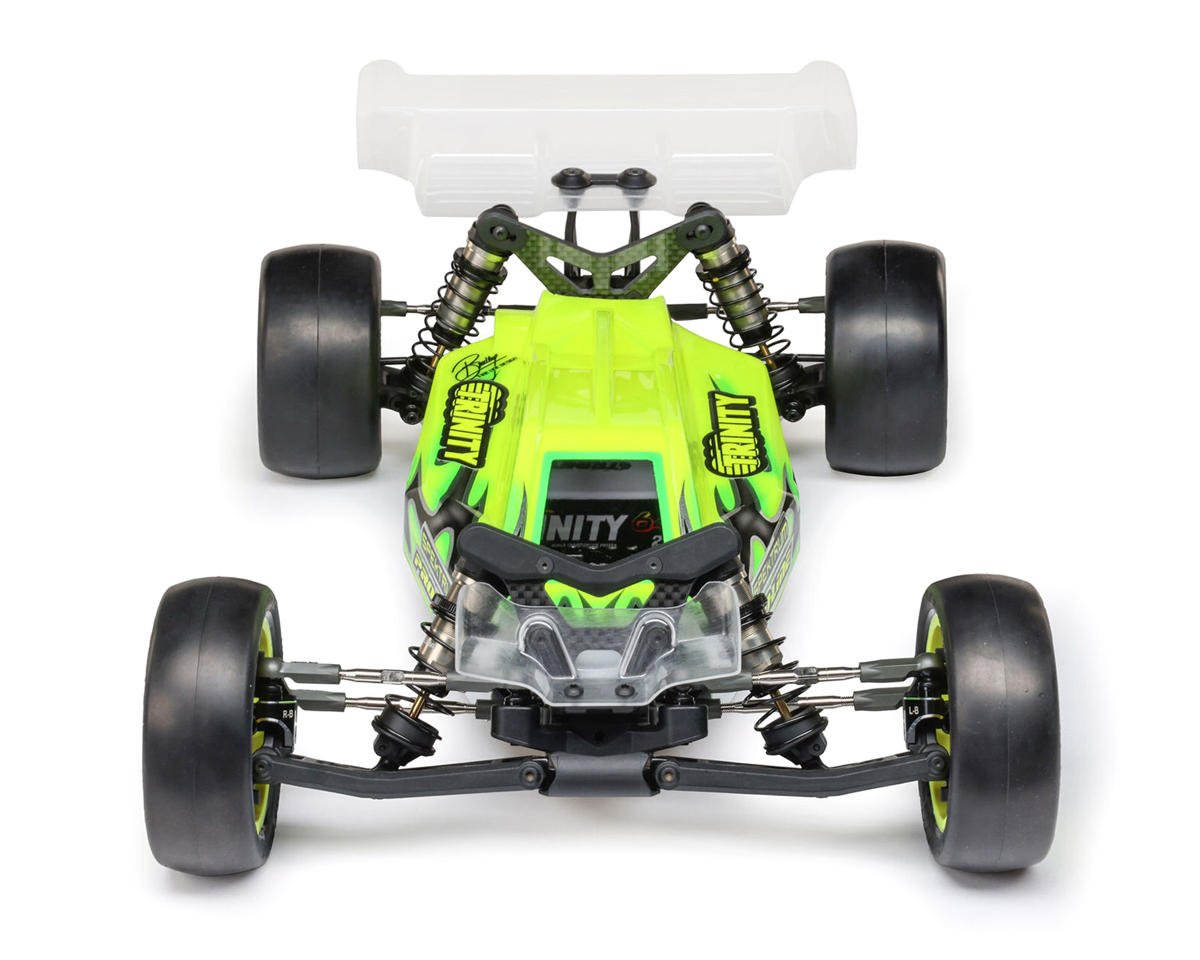

Team Losi Racing 22X DC 1/10 2WD Electric Buggy Kit (Dirt & Clay), TLR-1233

Team Losi Racing 22X DC 1/10 2WD Electric Buggy Kit (Dirt & Clay), TLR-1233

Team Losi Racing takes its revolutionary 22 series and launches the next era of electric racing dominance with the 22X DC 2WD kit — an updated design with more adjustability for higher speed capabilities on today’s high-grip dirt and clay surfaces. The result is a buggy design that's easier to maintain and comes optimized for dirt and clay tracks.

Features:
Hard-anodized 2mm machined 7075-T6 aluminum chassis
Laydown gearbox with easy-access differential and idler gear
Larger 13mm big-bore shocks for optimal handling and cornering
Larger 13mm shock springs for proper support
Adjustable caster from -5° to 5° in 2.5° increments
Adjustable kick up from 20° to 25° in 2.5° increments
Multiple steering offsets available — get the feel you need on any surface
Industry standard offset front wheels
Rigid 4mm woven carbon fiber front and rear shock towers
Refined steering geometry for a consistent feel around the track

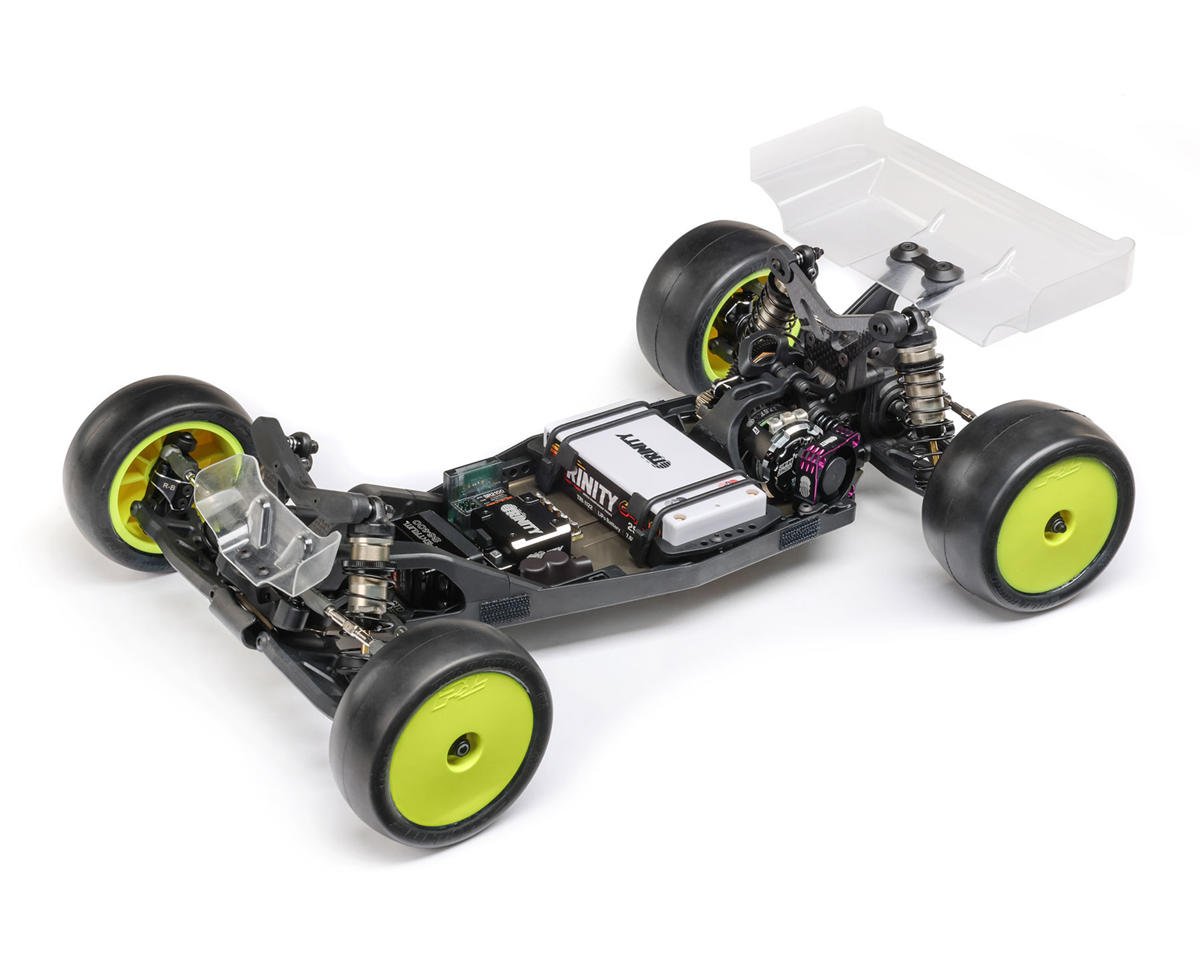

Chassis
Lengthened for consistency with current track types, the 2mm machined 7075-T6 aluminum chassis is hard-anodized for excellent wear characteristics and precision milled to flex in the correct places for optimal grip. The prevalence of spec racing has led to the need for many racers to install motor fans for keeping temperatures lower. Rather than an aluminum mount or double-sided tape, the 22X includes a built-in, molded fan mount secured to the mud guard.

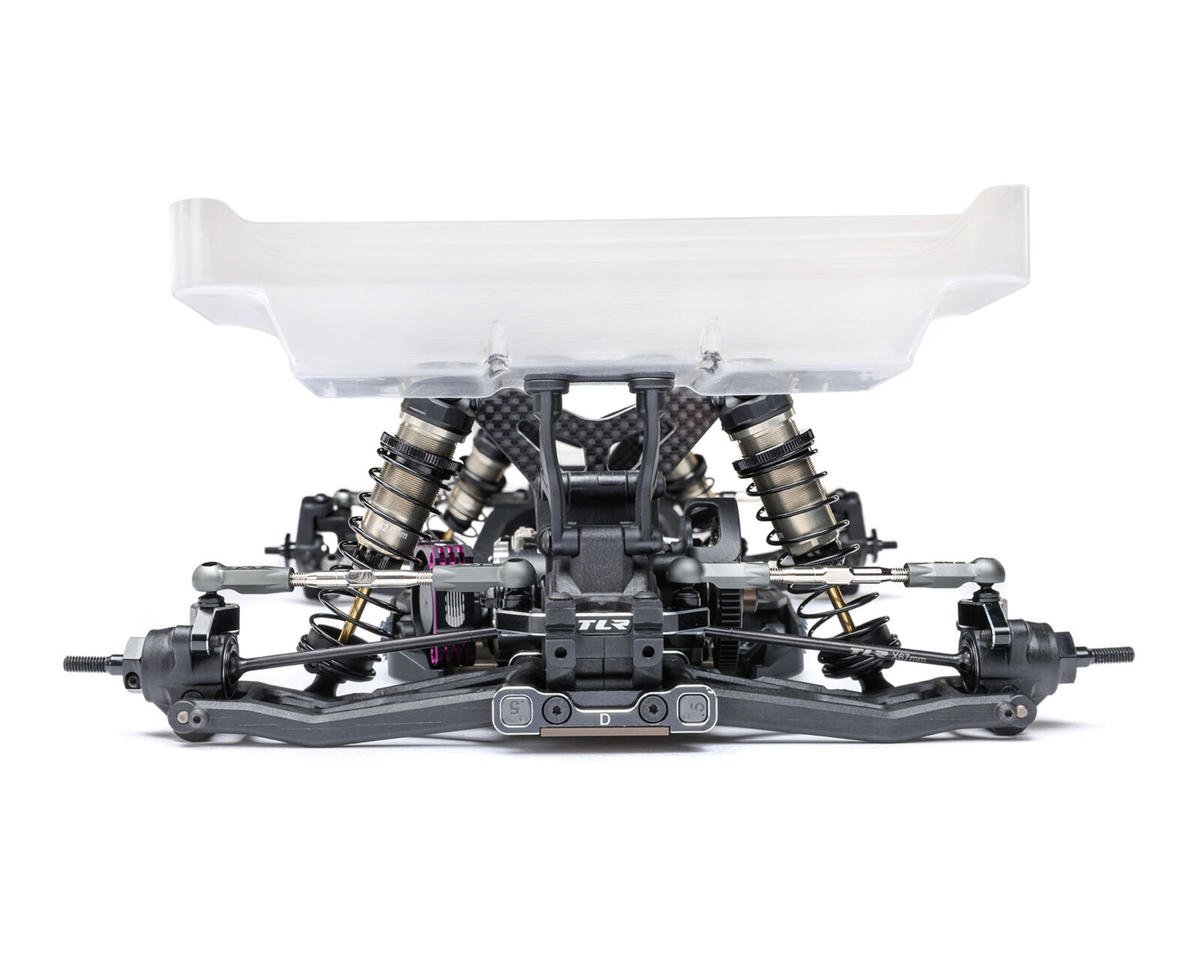

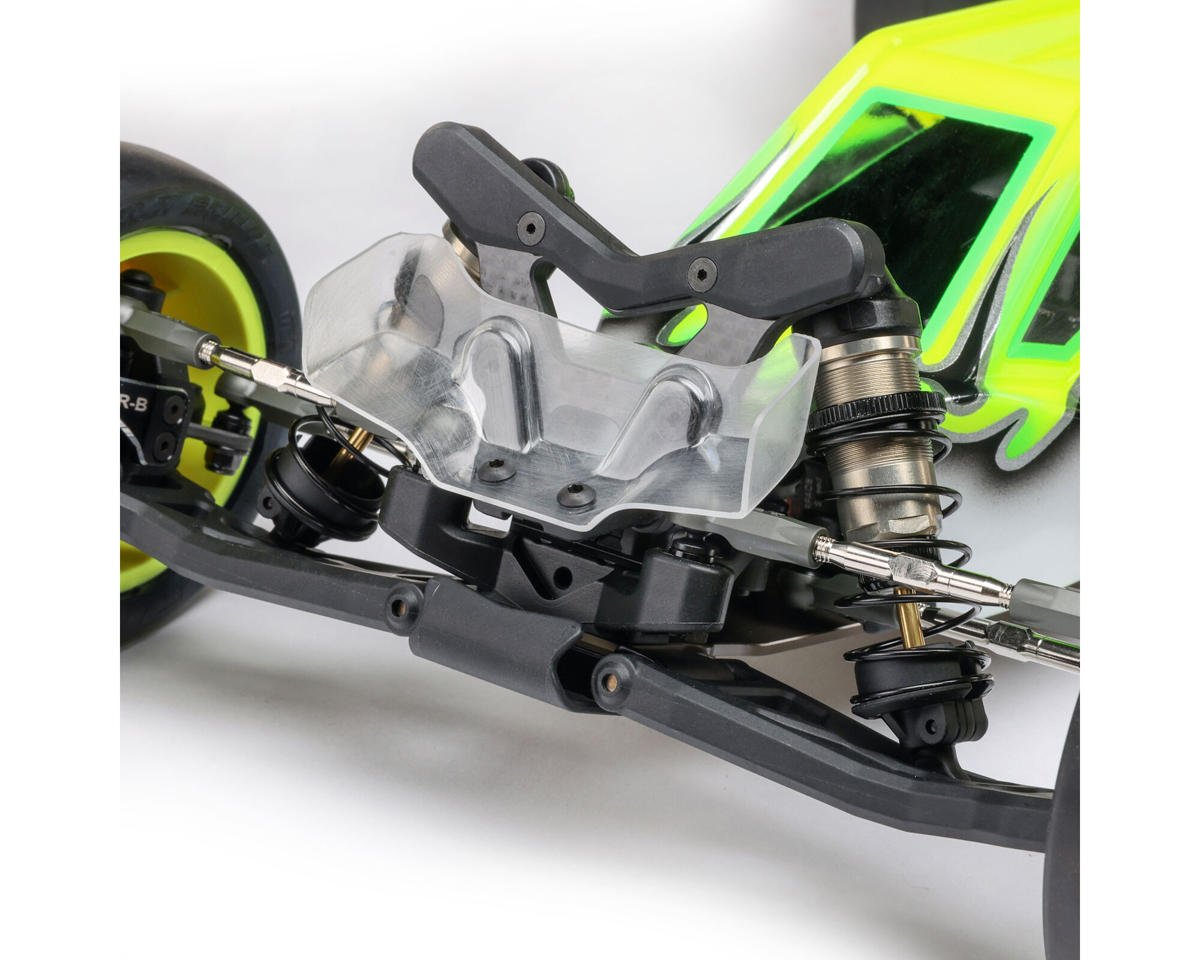

Suspension

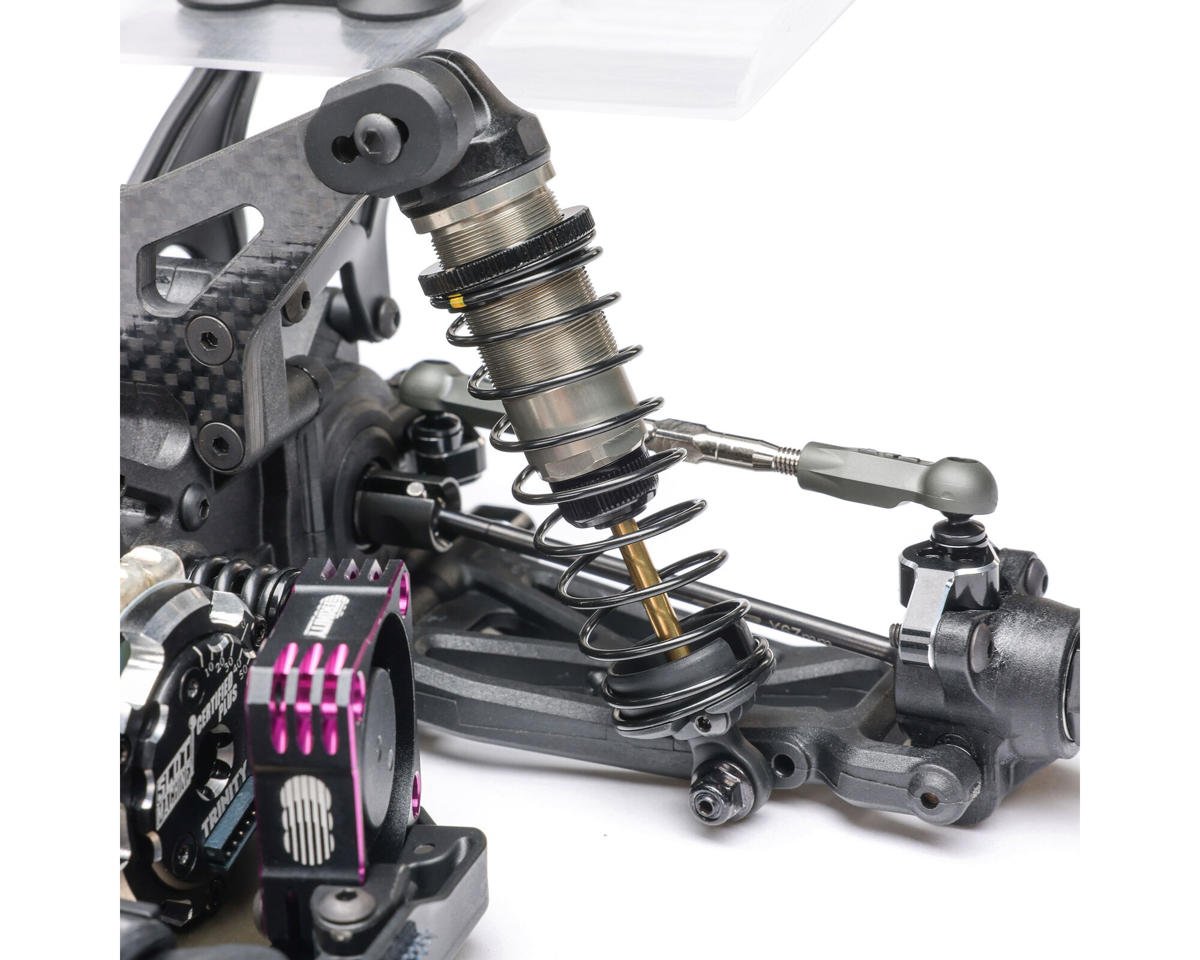

Larger 13mm big-bore shocks are included with the 22X for even better handling and cornering. They're paired with 13mm springs to provide the proper support. The updated shocks have updated G3 3mm internals while utilizing the current trusted seals. A wide variety of caster adjustment options — from -5° to 5°, in 2.5° increments — are available right out of the box. In combination with the adjustable kick-up, this lets you go from 15° to 30° of total caster.

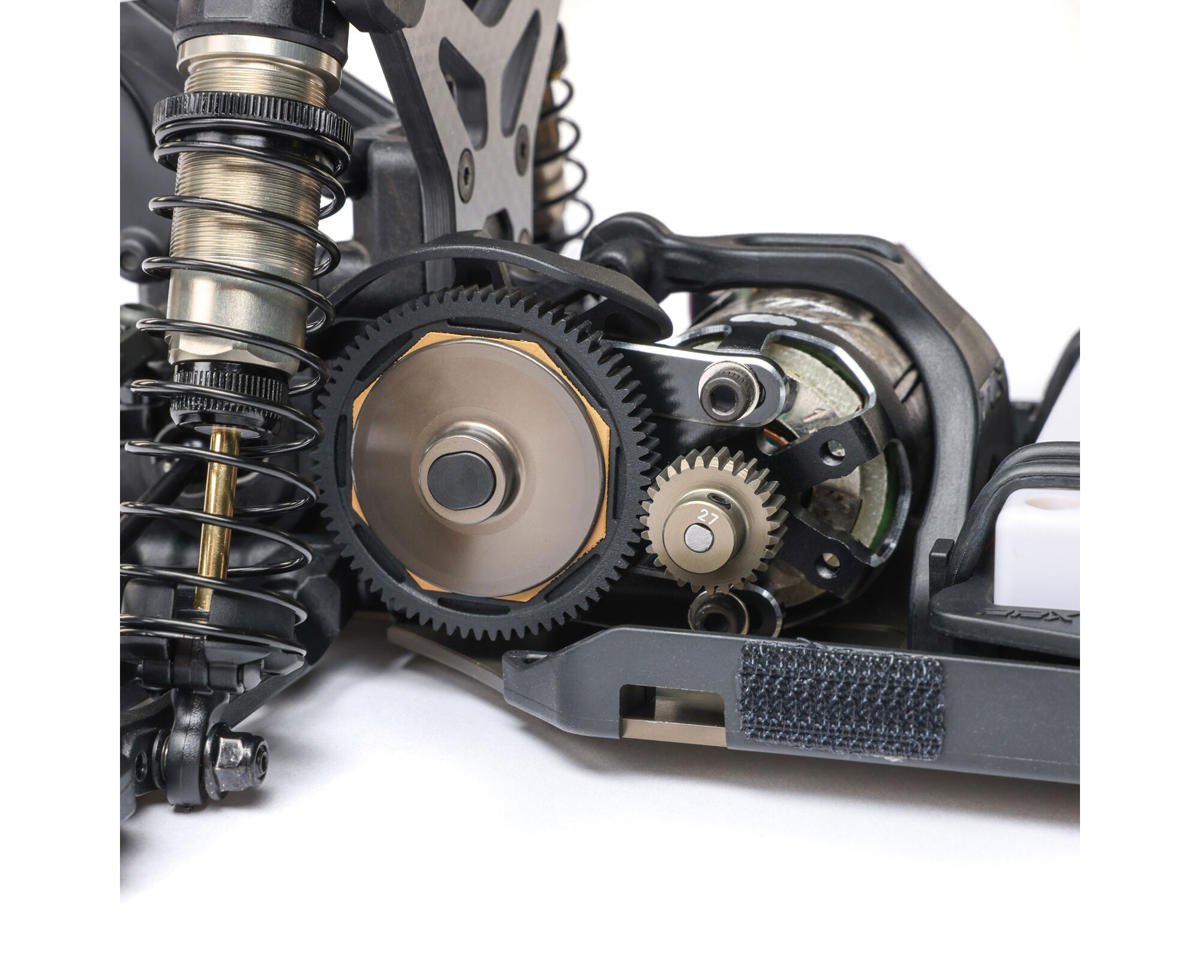

Drivetrain
The updated laydown gearbox design allows easy access to the differential and idler gear. The idler gear and differential can be replaced and maintained quickly without disassembling the entire gearbox — a key convenience because the suspension uses the gearbox for all of its mounting points. Multiple differential heights are possible, starting higher than the previous 22 vehicles for the current style tracks.

Includes:
(1) Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit
(1) Pro-Line Sector 22X Body
(1) Pro-Line Air Force 7” Wing
(1) Pro-Line Front Wing
(1) Product Manual

Needed To Complete:
(1) ESC
(1) 540 Size Motor
(1) 2S LiPo Shorty Battery
(1) LiPo Battery Charger
(1) Receiver
(1) Transmitter
(1) Servo
(1) 48-Pitch Pinion Gear
(1) 30 x 30mm Motor Fan (Optional)
(4) 2.2” Buggy Wheels (2WD Fronts, Buggy Rears)
(4) 2.2” Buggy Tires (2WD Fronts, Buggy Rears)
Polycarbonate Paint
