Team Associated

RC10 B6 Builders Support Kit ASC-90033

RC10 B6 Builders Support Kit ASC-90033

Regular price $199.99 USD
Regular price Sale price $199.99 USD
Sale Sold out

Champions by design. 1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!

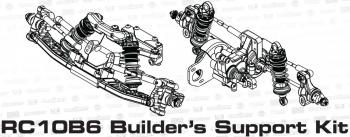

The RC10B6 Builders Support Kit brings Team Associated race-winning technology to builders assembling dirt oval sprint cars, late models, and custom drag cars. The applications are endless. The Builders Support Kit has the major sub-assemblies builders need in a value-packed kit, without having to pay for excess 2WD off-road buggy parts.

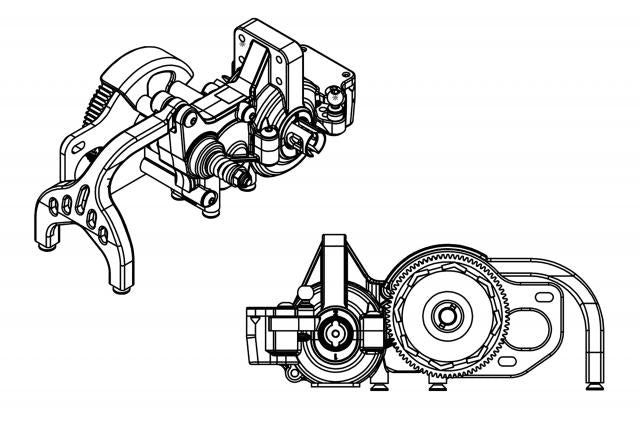

At the heart of the RC10B6 Builders Support Kit is the Laydown and Layback transmissions with ball differential; both gearboxes are included. Putting the power down is the next-generation Octalock slipper clutch with Factory Team LCF slipper pads. Along with the easy-access rear differential, the rear end includes standard pivot rear blue aluminum arm mounts, 67mm CVA bones and B6.1 rear hubs. The kit also includes a set of four 12 mm Big Bore shocks, all four with 24mm length bodies for custom build applications. Builders need only select an appropriate application, and they can bolt on the suspension, shocks, hubs, drivetrain, and gearbox from the builder's kit. The opportunities are endless to customize your dirt oval or drag car from any of the B6-based third-party specialty manufacturers in the industry.

Ball differential included
Laydown and Layback transmission assemblies included for tuning mass balance to different track surfaces
Adjustable differential height to allow drive shaft alignment through all ride height and axle height configurations

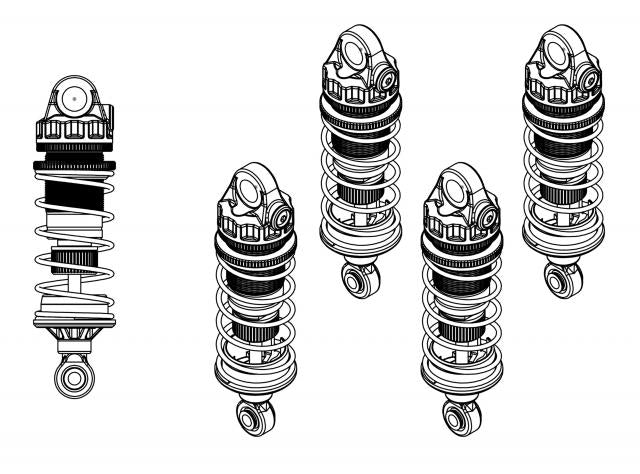

V2 12mm Big Bore threaded aluminum shocks (four 24mm bodies and four 21mm shafts) with X-rings for low friction assembly
V2 12mm shock springs (red front, yellow rear) for most dirt oval and on-road type applications

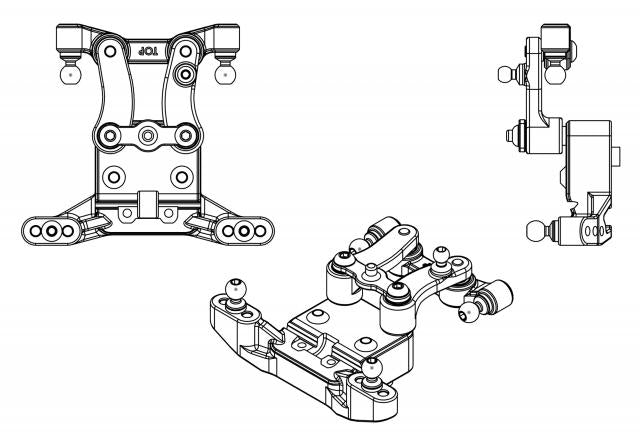

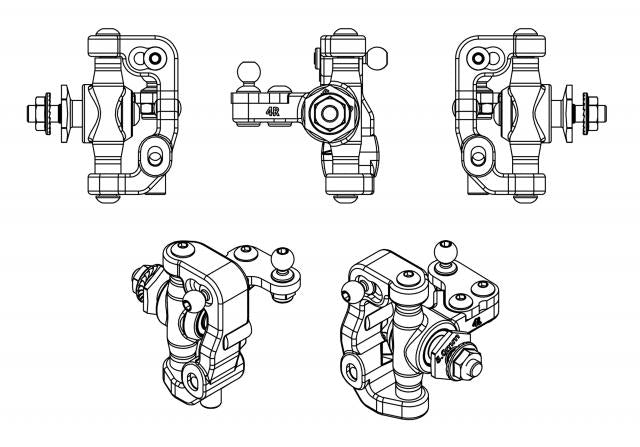

RC10B6 front end assembly (steering, top plate, and suspension) with gull wing front arms and blue aluminum front axles
Factory Team ball bearing set with 24 precision oiled ball bearings

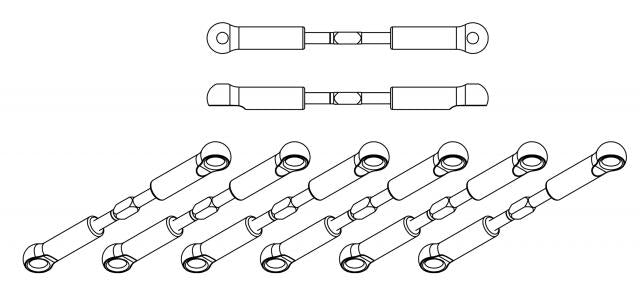

Set of six 48mm turnbuckles, ball cups, and HD metric ball studs
Standard pivot rear aluminum arm mounts for use with 67mm CVA bones and RC10B6.1 rear hubs
Aluminum rear ball stud mount with three link positions for maximum adjustability and added strength
Lightweight aluminum one-piece top shaft

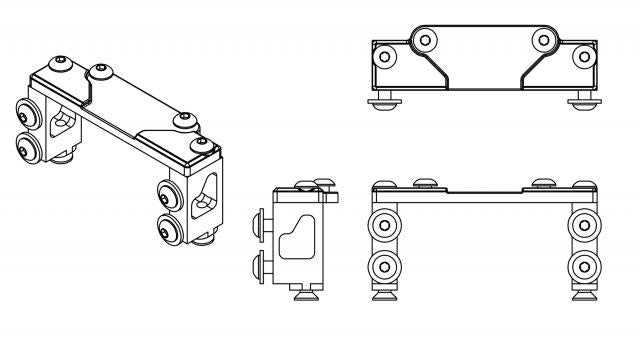

New RC10B6.3 servo mounting system with direct-to-chassis aluminum chassis mounts and molded brace with transponder mounting location
Octalock spur gears and 19mm Octalock LCF pads
2.5 mm thick machined shock pistons
Blue aluminum shock bushings
Molded wire clips included for motor and ESC wire organization
+1 carbon fiber steering arms
Black steel LP serrated wheel nuts
3mm I.D. molded plastic spacers included for ball stud and shim needs
7mm aluminum clamping wheel hexes
Fasteners and metric hardware

Not Included (Builders Support Kit vs. 2WD buggy kit)
Carbon-fiber front and rear shock towers
Aluminum chassis and molded side rails
Polycarbonate body and rear wing
Rear suspension arms
Rear wing mount assembly
Front wing and front wing mount assembly
Battery mounting strap and hardware
Set screw and flanged nut rear arm shock mounting hardware
Shock fluid
Aluminum ball stud washers
Aluminum ESC tray

Required to Complete
RC10B6 based dirt oval or drag conversion kit (see conversion vendors list following), adjustable toe-in rear arms may be sold separately)
Conversion-specific body for dirt oval or drag application
1:10 scale electric motor and electronic speed control
7.4V-7.6V 2S LiPo with shorty battery dimensions (standard or low-profile height)
Battery charger (suited for one of the batteries mentioned above)
2-channel surface transmitter, 2-channel receiver, and steering servo
Spray paint for Lexan(R) bodies
Silicone shock fluid
Pinion gear
1:10 scale wheels and tires (application specific)

Conversion Vendors List
Click here to see listing of vendors.

Other Helpful Items
Silicone shock fluid (refer to catalog for complete listings)
Silicone diff fluid (refer to catalog for complete listings)
FT body scissors (AE Part #1737)
FT body reamer (AE Part #1499)
FT hex/nut driver set (AE Part #1519)
CA tire adhesive (AE Part #1597)
Hobby knife
Needle nose pliers
Wire cutters
Soldering iron
Calipers or a precision ruler

Optional Parts
1111 FT turnbuckle wrench
1114 FT dual turnbuckle wrench
1369 FT alum clamping servo horn 23T, 15.5mm
1370 FT alum clamping servo horn 25T, 15.5mm
1405 FT Titanium Turnbuckles, 48 mm/1.875 in, silver
1498 FT Universal Tire Balancer
1568 FT 5.5mm Short Nut Driver
1569 FT 7.0mm Nut Driver, T-Handle
1570 FT 7.0mm Short Nut Driver
1579 FT Ball Cup Wrench
1736 FT Blue Body Clips, sh
6576 FT Precision Ground Diff Drive Rings
71034 FT Clamping Wheel Hexes, 6.0mm
91569 FT 12x24 Shock Bodies V2, FOX Kashima Coat
91576 FT 12x23mm FOX Shock Bodies
91577 FT 12x27.5mm FOX shock bodies
91616 FT 3x21mm chrome shock shaft
91620 FT 3x27.5mm Chrome Shock Shafts
91659 RC10B6 FT Brass Bulkhead, 30g
91658 RC10B6 FT Aluminum Bulkhead, 10g
91668 RC10B6 FT Aluminum Steering Bellcranks
91669 RC10B6 FT Aluminum Steering Rack
91671 RC10B6 Flat Front Arms
91672 RC10B6 Flat Front Arms, hard
91674 RC10B6 Gullwing Front Arms, hard
91681 RC10B6 Caster Block Hat Bushings, 0.5, 1.5, 2.5mm
91683 RC10B6 FT Titanium Front Axles
91727 RC10B6.1 FT Titanium Turnbuckle Set, 3x48mm
91760 RC10B6.1 FT Rear Hubs, blue aluminum
91773 RC10B6.1 FT Brass Arm Mount C
91781 RC10B6.1 FT Aluminum Gear Diff Cover
91793 FT Aluminum Diff Height Inserts
91796 FT Carbon Fiber Laydown/Layback Motor Plate
91797 FT Titanium Top Shaft Screw
91800 RC10B6.1 FT Direct Drive Kit
91802 RC10B6.1 FT Vented Slipper Hub, inner
91805 RC10B6.1 HTC Slipper Hub, outer, and Disc
91806 RC10B6.1 FT Vented Slipper Hub, outer
91807 RC10B6.1 FT HTC Vented Slipper Hub, outer, and Vented Disc
91862 FT Clamping Wheel Hex, 4.0mm
92011 RC10B6 Arm Mount Inserts, 1/0.5
92100 FT Aluminum Wing Buttons
