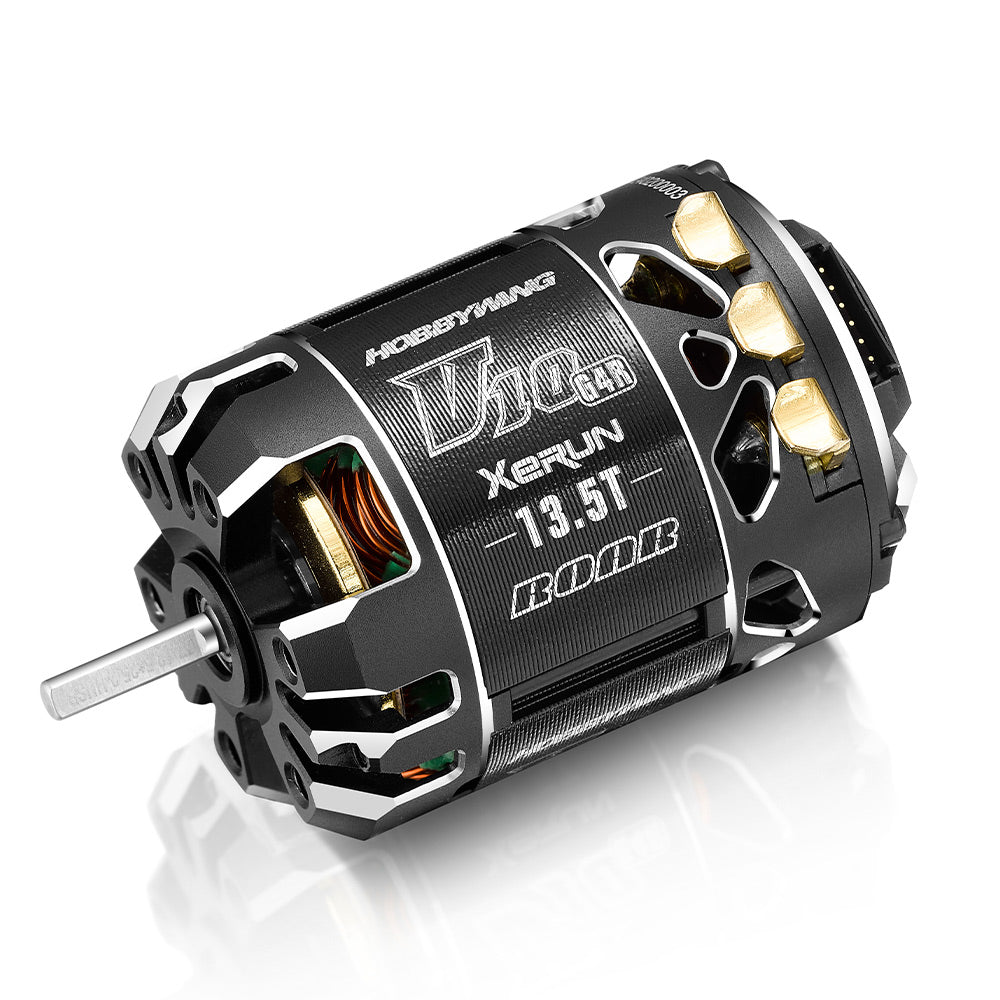

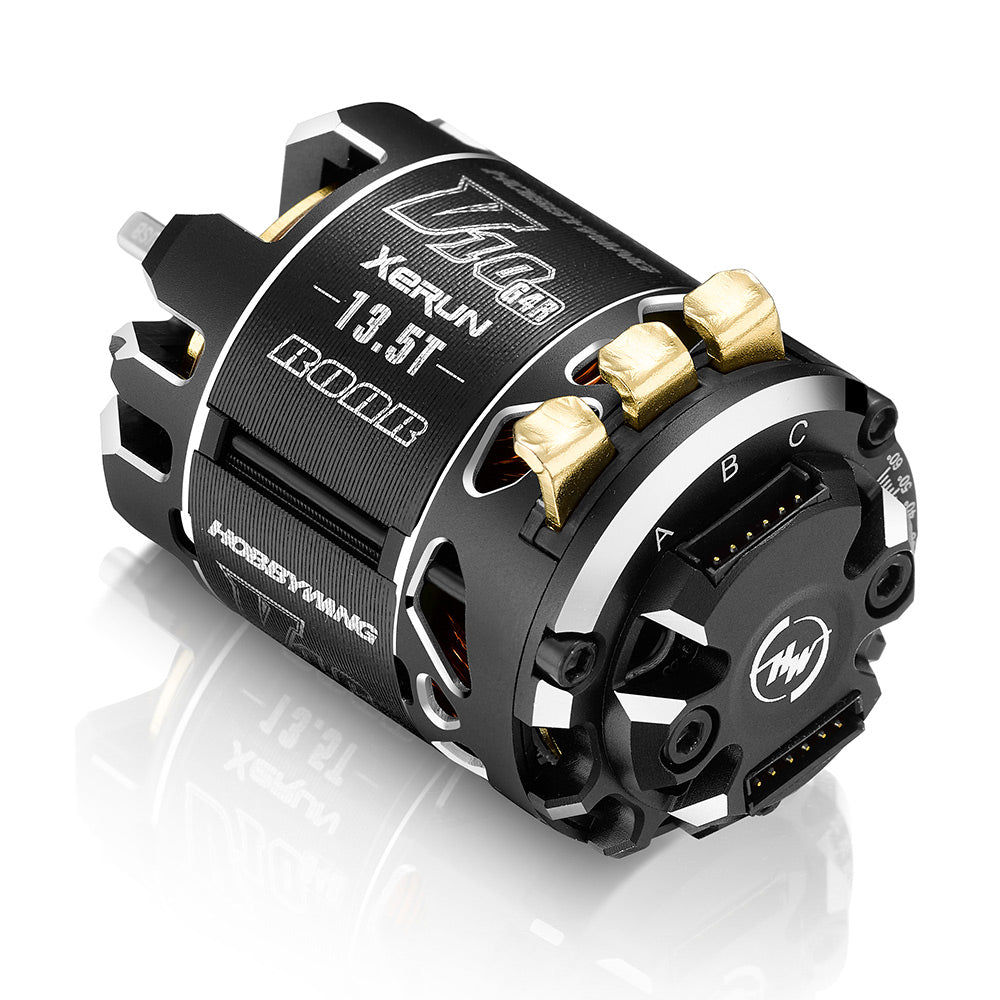

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor (13.5T) (ROAR), HWI-30401746

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor (13.5T) (ROAR), HWI-30401746

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor. Specially designed for 1/10 and 1/12 ROAR Stock racing, this Xerun V10 G4R is equipped with a high-performance stator core, built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness, innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation and dual sensor interface design to meet various wiring/layout requirements! Making this Xerun V10 G4R the ultimate ROAR approved weapon of choice for 1/10 and 1/12 Stock racing

NOTE: Due to differences in competition rules, there are two versions of the motor, standard (G4) version for EFRA rules and ROAR (G4R) version for ROAR rules.

Features:
Specially designed for 1/10 -1/12 Stock racing
High-performance stator core
Built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness
Innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation
Rear end of the motor is a big opening structure to further improve the heat dissipation effect
Dual sensor interface design to meet various wiring/layout requirements
Widened copper bar spacing for easier wire soldering
High precision and high strength bearings, and copper solder tabs

Specifications:
ROAR Approved: Yes
Turns: 13.5T
kV Rating: 4100kV
Outer Diameter: 35.8mm
Length: 51.3mm
Shaft Diameter: 3.175mm
Weight: 158g
Poles: 2
Front Bearing: 9x4x4mm
Rear Bearing: 8x3x4mm
No Load Current: 5.4A
Adjustable Timing: 20-60 degrees
Applications: 1/10th Stock Class Racing
Input Voltage: 1-2S LiPo (3.2-7.4V)

Includes:
(1) Xerun V10 G4R Competition Stock Brushless Motor
(1) User Manual
