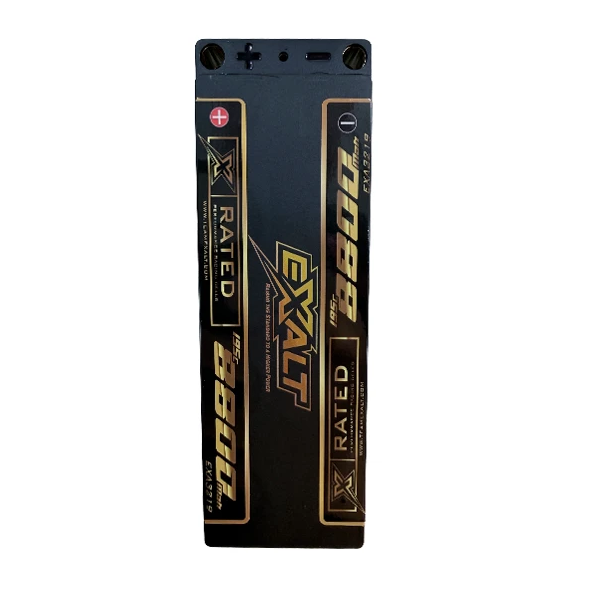

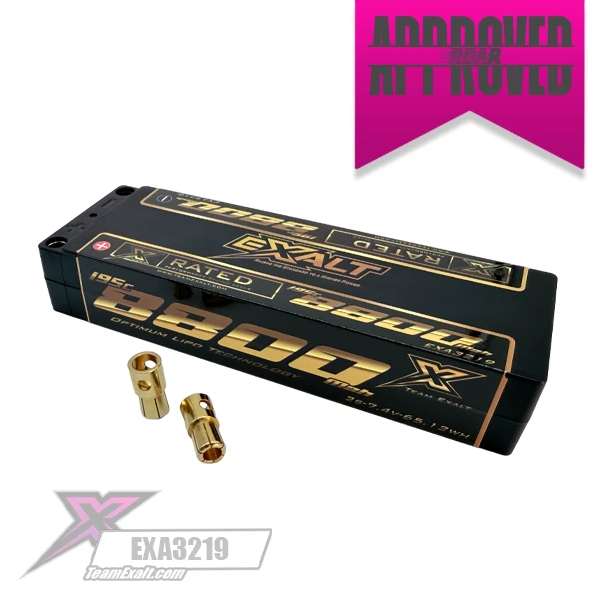

Team Exalt X-Rated 2S 195C Stick Hardcase Lipo (7.4V/8800mAh) w/6mm Bullets, EXA3219
HIGH AMPERAGE NEEDS A BETTER CONNECTION.
The Team Exalt EXA3219 X-Rated 8800mAh 195C Stick Battery was developed for today’s demanding high-performance RC power systems. Combining 8800mAh capacity, a 195C discharge rating, 270C max burst rating, and 6.0mm bullet connections, the EXA3219 is built to deliver serious power while providing the robust electrical connection demanded by high-amperage applications.
At just 25.1mm tall, the EXA3219 packs impressive capacity and performance into a traditional stick-style footprint, making it an outstanding power option for 1/8 E-Buggy, E-Truggy, and other compatible high-current applications.
PRODUCT SPECIFICATIONS
Part Number: EXA3219
Product Line: Team Exalt X-Rated
Capacity: 8800mAh
Voltage: 7.4V
Discharge Rate: 195C
Max Burst Discharge Rate: 270C
Weight: 332g +/-
Dimensions: 139mm × 47mm × 25.1mm (L × W × H)
Connector Type: 6.0mm Bullet
Configuration: Stick Pack
WHY 6.0MM BULLETS?
The connection between your battery and ESC is one of the most important — and sometimes overlooked — parts of a high-performance power system.
As amperage increases, even small amounts of electrical resistance become increasingly important. Resistance can create voltage drop and heat, reducing the efficiency of the electrical path between the battery and ESC.
Electrical heating follows the basic relationship:
Power Loss = Current² × Resistance (I²R)
This is particularly important in high-amperage applications because current is squared in the equation. If current doubles while resistance remains unchanged, resistive heating increases by approximately four times.
That’s a major reason Team Exalt equipped the EXA3219 with 6.0mm bullet connections.
A properly fitted 6.0mm bullet provides a larger, robust electrical contact interface designed for high-current power systems. This can help:
- Minimize connection resistance
- Reduce voltage drop across the connection
- Reduce unwanted heat generation causing the battery cases to melt around the bullet.
- Provide a substantial electrical path between the battery and ESC
- Maintain a secure connection in demanding racing conditions
- Better support today’s powerful 1/8-scale electronics
- DESIGNED WITH 1/8-SCALE RACING IN MIND
- Modern 1/8 E-Buggy and E-Truggy racing places enormous demands on a power system.
Hard launches, high-traction surfaces, aggressive gearing, powerful motors, large jumps, heavy vehicles, and rapid acceleration can create substantial instantaneous current demands.
E-Truggy can be particularly demanding due to its additional vehicle weight and larger rotating tire mass.
Under these conditions, the electrical connection matters.
You can have an extremely capable battery, motor, and ESC, but the power still has to travel through the connectors joining those components together. A connection with unnecessary resistance can become a source of heat and voltage loss when current demand increases.
