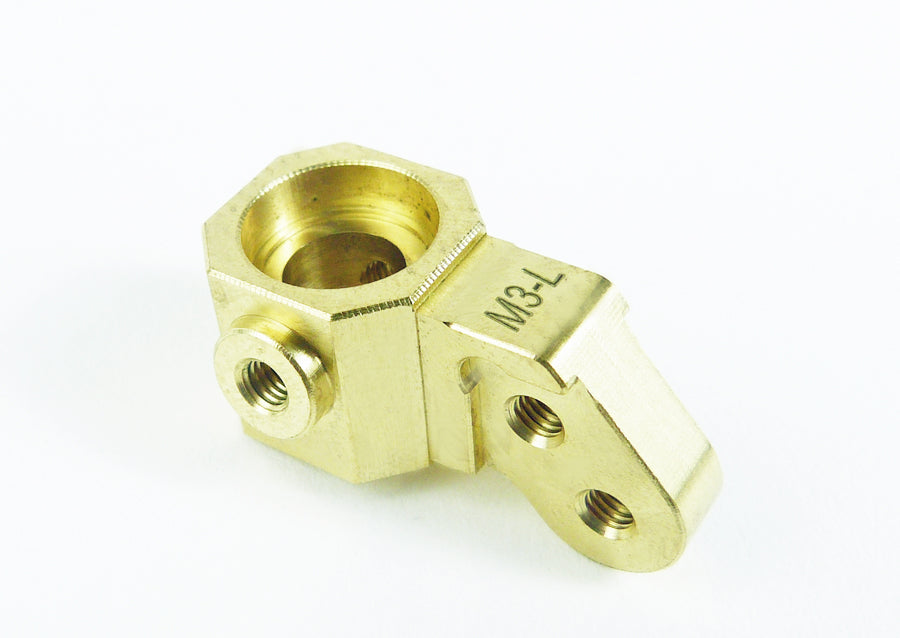

M3 BRASS LEFT INCLINED HEX SPINDLE – INLINE (1)

10g heavier than the aluminum version.

Required hardware for installation:
2pcs: 1237 5x10x3mm Unflanged Bearings -OR- 2pcs 8566 5x10x3mm Unflanged Hybrid Ceramic Bearings

For the below parts, be sure to check your instruction manual.  The latest vehicle releases may already include the below items.

2pcs: 7299 M3 Steering Bushings

2pcs: 5358 M3x8 BH Screws (For mounting the carbon steering extender to the spindle)

1pc: 5360 M3x10 BH Screw + 1pc- 5212 Flat Washer (For mounting the bottom of the spindle to the caster block)

1pc: 5360 M3x10 BH Screw + 1pc 5212 Flat Washer (For mounting the top of the spindle to the caster block)
-OR-
1pc: 8333 Tall M3 Ball Stud (When using the kingpin ball stud to mount the camber link)

*NOTE*
If using the 7260 Clamping Hex Axle, you will need to use 2pcs of 7261 Crush Spacers per axle when installing on any inclined spindle.
