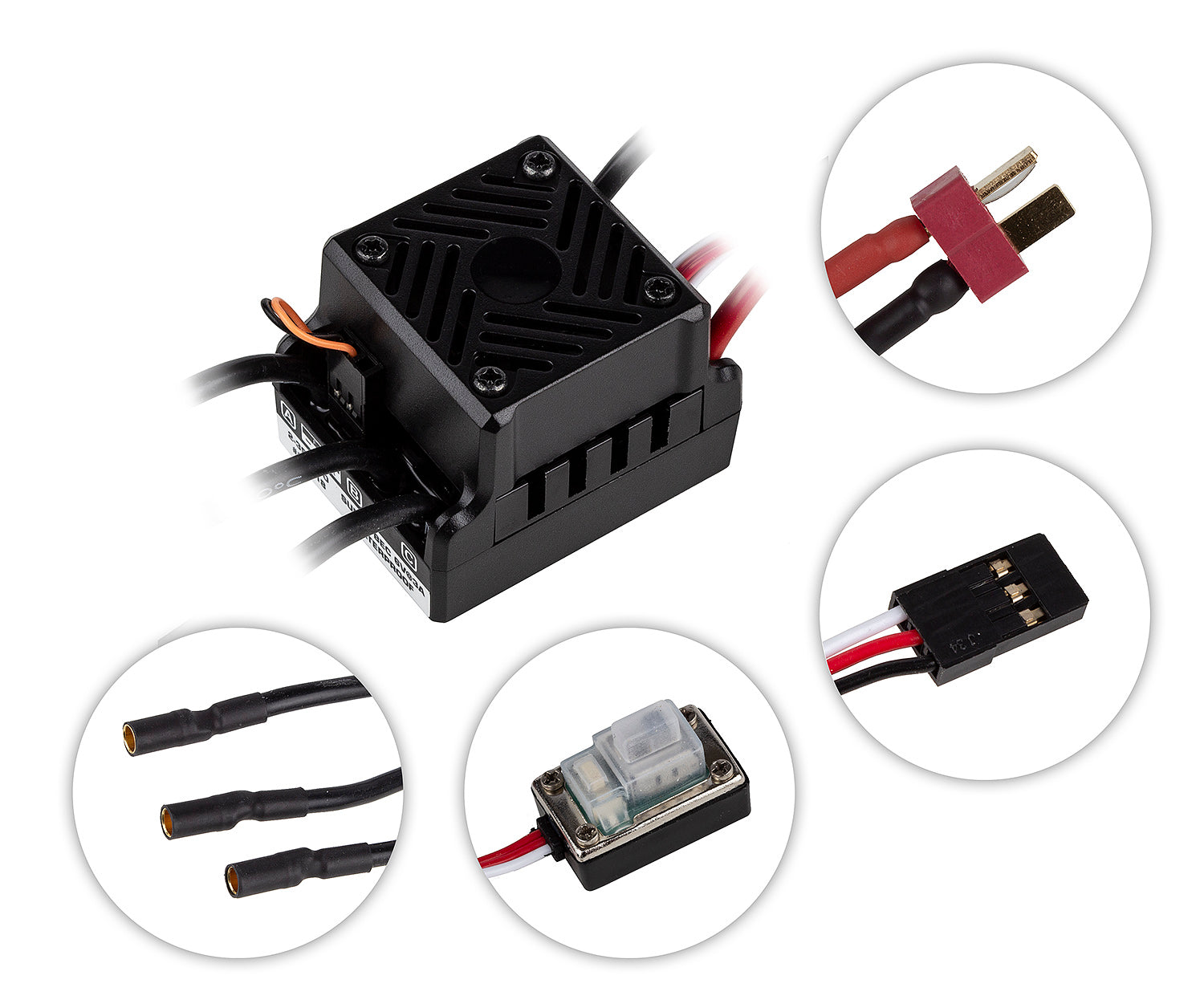

Reedy SC600-BL Sensorless Brushless ESC, ASC-27018

Team Associated / Reedy SC600-BL Sensorless Brushless ESC, ASC-27018

The Reedy SC600-BL2 Brushless ESC is fully programmable using the on-board SET button or optional #27019 BL2 Program Card to extract maximum performance and waterproofing for improved durability. The latest electronics technology along with the design and engineering experience that is responsible for 30 World Championship titles has been incorporated into its design.

Its robust design installs in most 1:10 vehicles including buggies, stadium trucks, 2WD and 4WD short course trucks, monster trucks, and touring cars. When paired with Reedy brushless motors, a potent combination of power and efficiency is created, resulting in quick acceleration, high top speeds, generous run times, and more fun!

Features:
Programmable performance functions
LiPo cell auto-detection
Fully proportional brakes
Durable case with aluminum heat sink
Pre-wired cooling fan
Waterproof
Heavy-duty silicone wires
Low-resistance T-plug connector
3.5mm motor connectors
Optional #ASC27019 BL2 Program Card

Programmable Functions:
Running Mode: Select between Forward/Brake or Forward/Brake/Reverse modes.
Drag Brake Force: Adjust the automatic braking force generated by the motor when the throttle trigger is returned to neutral position.
Low Voltage Cutoff: Use to prevent excessive discharge of lithium batteries which can damage them permanently.
Punch Control: Change throttle response depending on the vehicle being used and the surface being driven on.
Max. Brake Force: Adjust the percentage of available braking power when full brake is applied.

Specifications:
Cells: 2-3 LiPo
Suggested Applications: 1:10 Buggy, Truck, Monster Truck, and Touring Car
Continuous Current: 60A
Brakes: Proportional
Motor Limit: 2S LiPo: 6000kV / 3S LiPo: 3500kV
Reversible: Yes, F/B or F/B/R mode
Low Voltage Cutoff: Yes, with Cell Auto-Detect
Dimensions (mm): 46 x 36.5 x 35.5
Weight: 98.2g
Power Wires: 13-gauge silicone
Programming Method: SET button, LED Program Card
Connector: Battery: T-plug. Motor: 3.5mm sockets.
