1RC Steering Servo, Digital, Metal Gear, 18th Scale

1RC Steering Servo, Digital, Metal Gear, 18th Scale

Includes

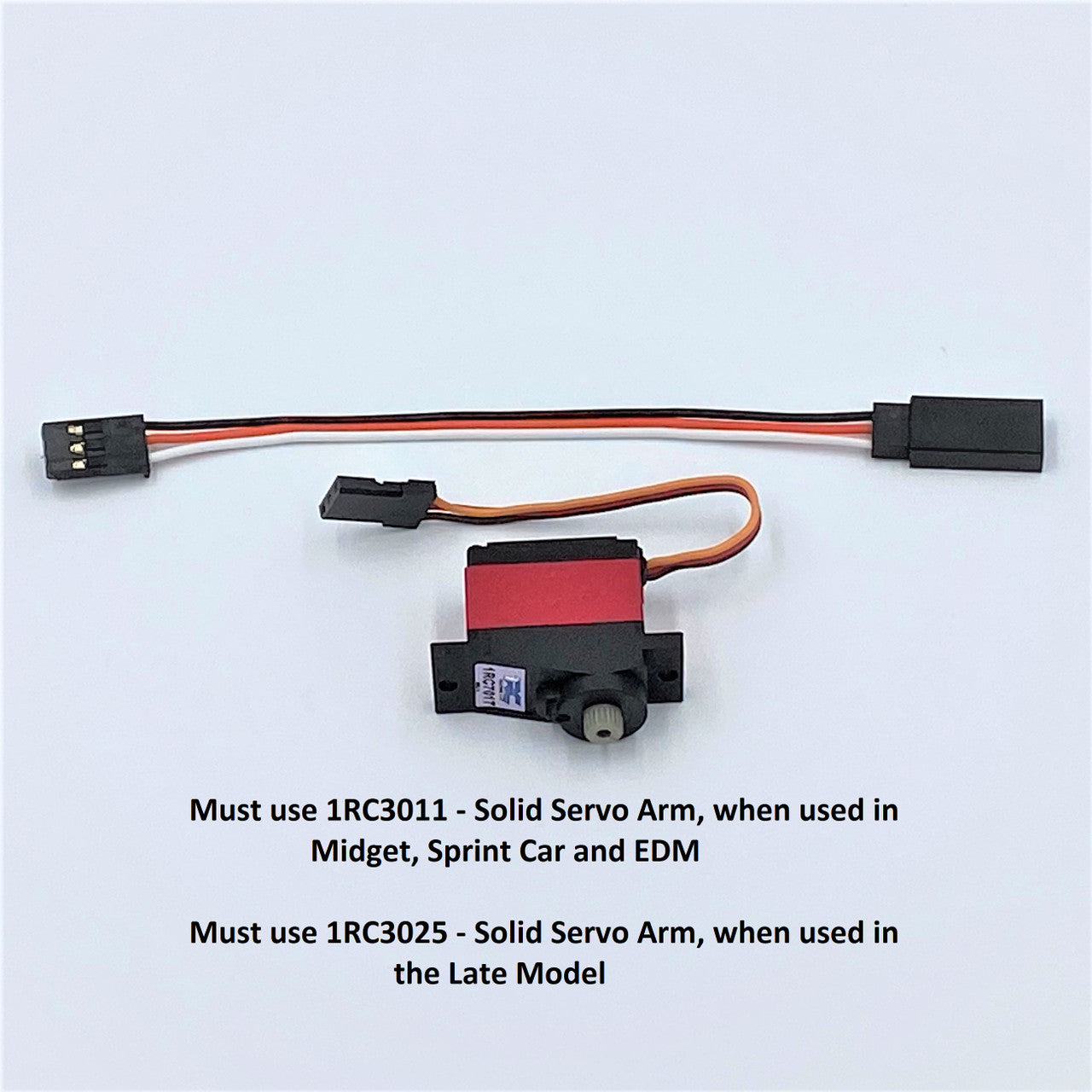

(1) Digital Metal Gear Steering Servo
(1) Servo Wire Extension - 100mm

CAUTION - If servo is used in the Asphalt Modified, be aware due to the front tires being exposed and so large on this car, damage can occur to servo due to wall or other vehicle contact in certain instances.

NOTE
Must use 1RC3011 - Solid Servo Arm, when using this servo in the Midget, Sprint Car and EDM.
Must use 1RC3025 - Soild Servo Arm, when using this servo in the Late Model.

Servo Specs
Dimensions - 22.8mm long x 12.0mm wide x 25.4mm height
Torque - 25.0 oz-in @ 4.8v / 30.6 oz-in @ 6.0v
Speed - 0.13 sec (60 deg) @4.8v / 0.09 sec (60 deg) @ 6.0v
Weight - 14.0 grams
21T Spline
Wire Length - 70mm
